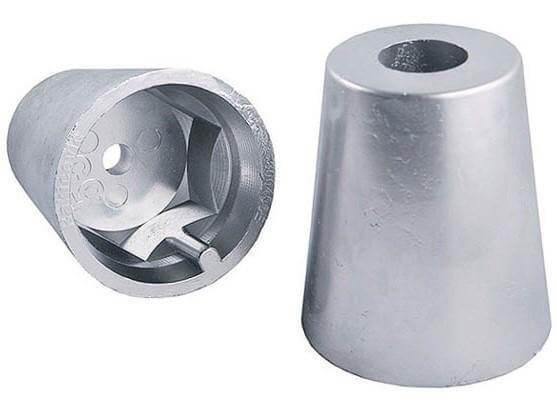

Zinc anode propeller, hexagonal, for 1.18inch Shaft, 0.579Lb, R800401e

Article: R800401e

Save 23% Save 23%
Original price $ 468.00
Original price $ 468.00 - Original price $ 468.00
Original price $ 468.00
Current price $ 361.00
$ 361.00 - $ 361.00
Current price $ 361.00
Availability:
In stock

Bulk discount
PCS Discount Price
5 5 % $ 342.95 /st
10 10 % $ 324.90 /st
20 15 % $ 306.85 /st
50 20 % $ 288.80 /st
Product description

Product specification

Zinc anode for propeller Ø30 mm

Material: Zinc

Alloy : MIL-DTL-18001L - Zn

Article: R800401e


  • Weight : 0.263 KG/0.58 lbs
  • For shoulder dimensions: 30mm/1.18 inch
  • Outer diameter : 43 mm/1.69 inch

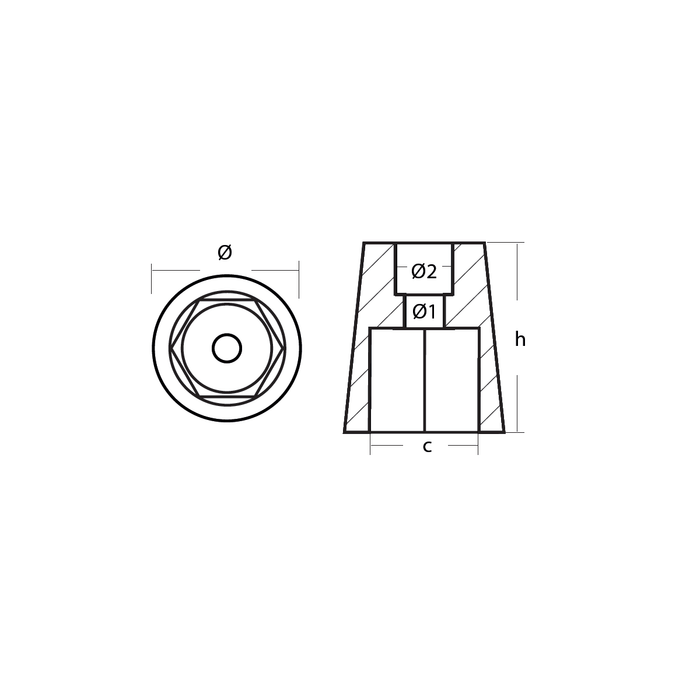

CODE

kg

lbs



c

h

Ø

Ø1

Ø2

Ø shaft

00401E

0.25

0.55

mm

inch

27

1.06

53

2.09

41

1.61

9

0.35

14

0.55

Ø 30



Zinc anodes are mainly used in seawater and brackish water. Zinc anodes can be used in brackish water if the resistivity is not too high (approx. 1.5 Ωm). Zinc is more chemically stable than Aluminum and is therefore preferred by many in weakly brackish water environments.

The term "zinc" has become synonymous with sacrificial anodes, as zinc was the original material used for this purpose. But other metals, such as aluminum and magnesium, also act as sacrificial anodes.

With over 30 years of experience, you as a customer can always feel safe with our products. We manufacture everything according to international standards and industry guidelines. Each batch of anodes undergoes careful testing and quality assurance, as it has been for over 30 years ...

Are you unsure of the type of material to use? Ask us, we can!

Technical data

  • Capacity: 780 Ah / kg(353.80 Ah / lbs)
  • Consumption: 11.2 kg / A year(24.69 lbs / A year)
  • Specific gravity: 7.13 kg / dm³(15.72 lbs / dm³)
  • Potential: -1 030 mV rel Ag / AgCl in seawater


Typical chemical composition, MIL-DTL-18001L - Zn


Material  % of weight
Aluminum (Al) min 0.10, max 0.5
Cadmium (Cd) min 0.025, max 0.07
Steel (Fe) max 0.005
Copper (Cu) max 0.005
Lead (Pb) max 0.006
Andra (each) max 0.10
Zinc (Zn) Remaining
