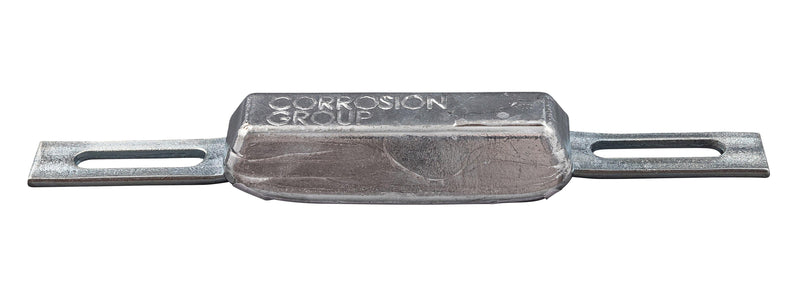

Aluminum anode 0.264Lb, 3.34 * 1.37 * 0.62inch (5.51inch), hole 0.27 * 0.51inch
Article: R800390ALAL
- Total length: 140mm/5.51in
- Width: 35mm/1.38in
- Height: 16mm/0.63in
- Hole distance: 114mm/4,49in
- Net weight:
- Gross weight: 0.12kg/0.26lb
- Reinforcement: Aluminium
PCS | Discount | Price |
---|---|---|
5 | 5 % | $ 259.35 /st |
10 | 10 % | $ 245.70 /st |
20 | 15 % | $ 232.05 /st |
50 | 20 % | $ 218.40 /st |
Product description
Product specification
Material: Aluminum
Alloy : Beralin, Norsok
Article: R800390ALAL
- Net weight : 0.12KG/0.264Lb
- Reinforcement/Insert: Aluminum
- Hole distance: 114mm/4.49 inch
- Bolt hole : 7x13mm(0.28x0.52inch)
- Total length: 140mm/5.51inch
- Length: 85mm/3.35 inch
- Width: 35mm/1.38 inch
- Height: 16mm/0.63 inch
Application areas:
- Ship hull
- Port
- Slip
- Cable
- Pipeline
- Dykdalb
- Pump
- Pontoon
- Piers
- Pillar
Aluminum anodes are mainly used in seawater. Can also be used in brackish water if the resistivity is not too high (<1 Ωm).
When it comes to seawater, however, aluminum is more efficient & durable than zinc and magnesium. Compared to Zinc, it takes about 1/3 of the weight to protect the same surface. The efficiency of an aluminum anode is high, about 90%. All our anodes are die cast for the best quality.
Are you unsure of the type of material to use? Ask us, we can!
Technical data
- Capacity: 2,680 Ah / kg
- Consumption: 3.3 kg / A year
- Specific weight: 2.78 kg / dm³
- Potential: -1 100 mV rel Ag / AgCl in seawater
Typical chemical composition, Norsok
Material% by weight
Zinc (Zn) min 2.5 max 5.75
Indium (In) min 0.015, max 0.04
Copper (Cu) max 0.003
Iron (Fe) max 0.09
Silica (Si) max 0.12
Kadmi. (CD) max 0.002%
Aluminum Residues
Information
Extend the lifespan of your marine investments, check the product description for more information.
